CO₂ Sensor

CO₂ Sensor

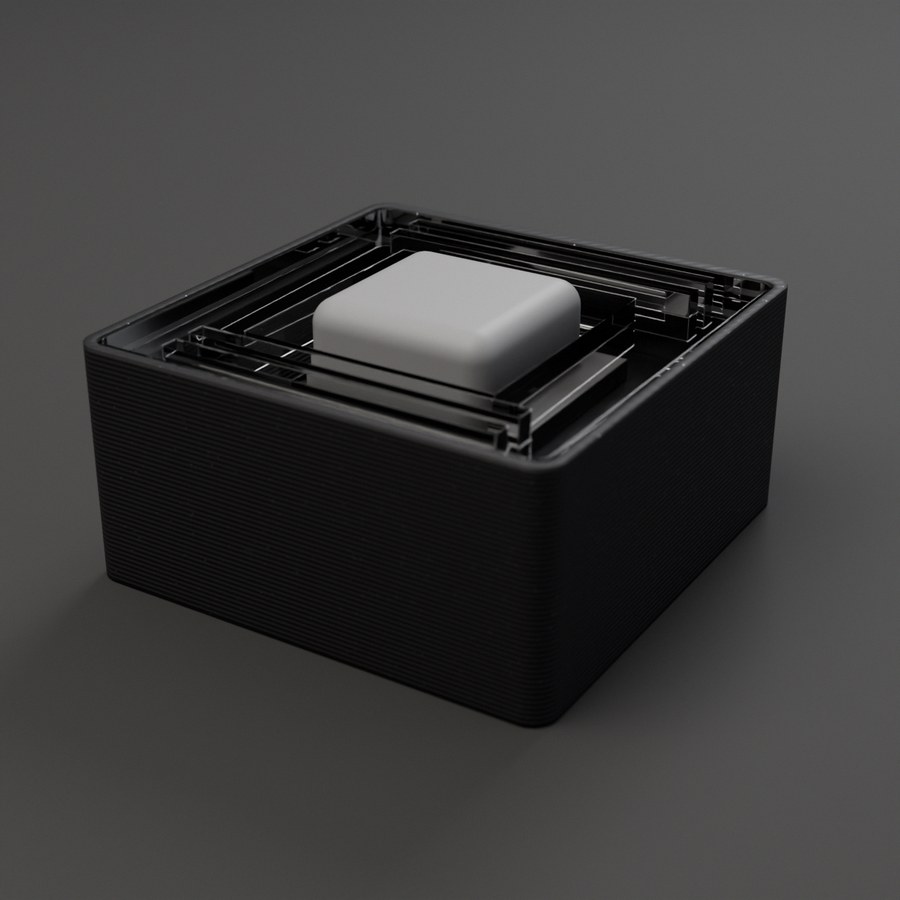

True NDIR CO₂ sensor with temperature and humidity, for indoor air-quality monitoring

SCD40-based sensor that measures real CO₂ concentration (400–2000 ppm typical) using NDIR rather than estimating it. Temperature and humidity come along as calibration byproducts. Connects over I2C and reports on the sensor's native ~5s cadence.

For ages 14 and up. Not a toy. Contains small parts: choking hazard. Keep away from children under 3. Adult supervision recommended.

Made by Atech ApS, Lille Strandstræde 6A, st. th., 1254 København K, Denmark.

Technical specifications

Part
SCD40 Air Quality Sensor (CO2)
Interface
I2C (0x62)
Ports
1 port
Current
~18 mA
Size
19.5 x 19.7 x 10.4 mm
Chip
SCD40 (Sensirion)

Pins

3.3V
supply
GND
ground
Data A
I²C SDA
Data B
I²C SCL

Key features

  • True NDIR CO₂ measurement (not estimated)
  • 400–2000 ppm typical range
  • Built-in temperature & humidity
  • Single-width I2C module

Common applications

Indoor air-quality monitoring
Ventilation / CO₂ alerts
Greenhouse & grow-room control
Occupancy estimation
+ Use in Project

Technical

Sensor

Air Quality

SCD40 Air Quality Sensor (CO2)
Interfacei2c @ 0x62
PortsTakes 1 port; needs a port carrying i2c
Current18 mA
Size19.5 × 10.44 × 19.72 mm (CAD bounding box)
DriverSCD40

Sensirion SCD40 NDIR CO2 sensor with true CO2 measurement (400-2000 ppm typical), with temperature and humidity returned as calibration byproducts. Background RTOS task polls the sensor at its native 5s cadence; readings are instant. First valid reading available ~5s after boot.

What it can do
  • read_co2 Read CO2 concentration in ppmint ppm
  • read_temperature Read temperature in Celsiusfloat C
  • read_humidity Read relative humidityfloat %RH
  • is_ready Check if first measurement has been receivedbool
How it works
SCD40 AIR QUALITY SENSOR (CO2 + temp + humidity):
- readCO2() returns uint16_t ppm. readTemperature() returns float Celsius. readHumidity() returns float 0-100 %RH.
- Sensor runs in a background FreeRTOS task. New measurements arrive every ~5s (sensor cadence).
- All getters return the latest cached value: instant, never blocking.
- readCO2() returns 0 until the first measurement lands (~5s after boot). Guard initial UI with isReady() if needed.
- Indoor CO2 reference: <800 ppm fresh, 800-1200 ppm acceptable, >1500 ppm poor (sleepy/distracted), >2000 ppm uncomfortable.
- Don't poll faster than every 500ms; the underlying sensor only updates every 5s.
Suggested control

Large CO2 readout in ppm front and centre, colour-coded by indoor-air-quality bands (≤800 green, 800-1200 yellow, ≥1200 red). Below it, two smaller temperature and humidity readouts and a 5-minute CO2 sparkline.

Pinout
Pinout
PinLineDirFunction
1HV–not connected
25V–not connected
33.3Vinputsupply
4GND–ground
5Data AbidirectionalI²C SDA
6Data BinputI²C SCL

from p2p/ground_truth/hardware/prototyping_line/modules/co2_sensor.md

Chip
SCD40Sensiriondatasheet ↗
