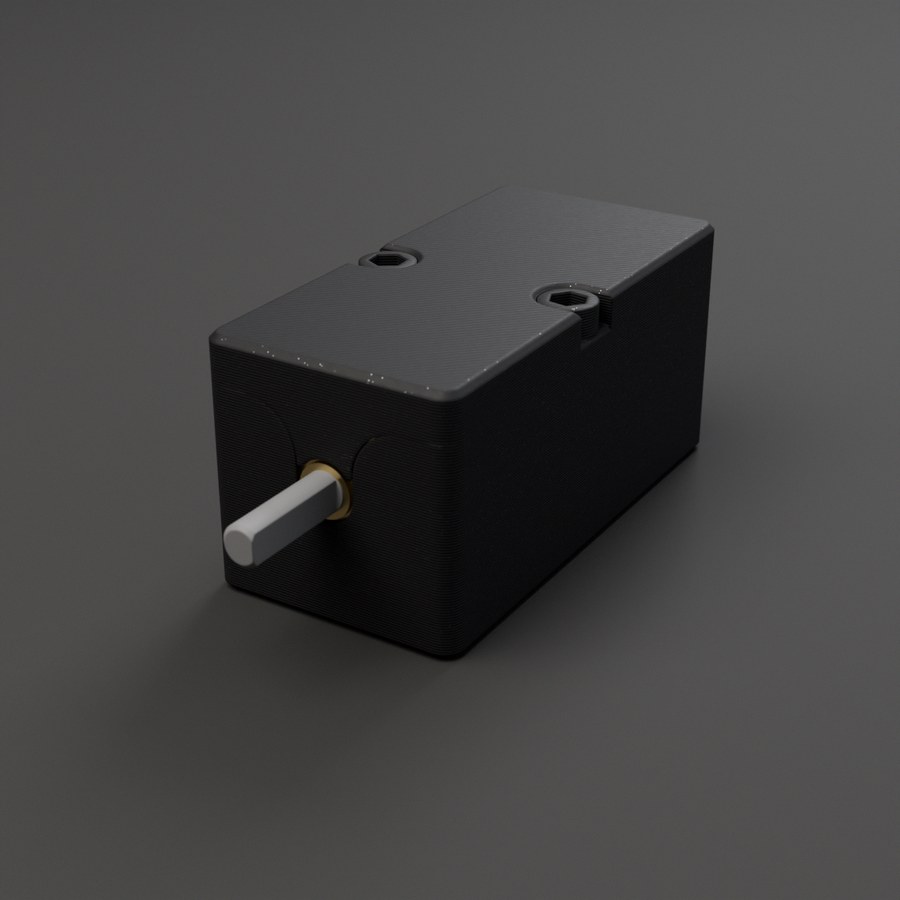

DC Motor

DC Motor

High-torque DC motor with H-bridge driver for deliberate movements

High-torque DC motor module with integrated H-bridge driver. Supports forward, reverse, and precise speed control. Compact design that extends beyond its port.

For ages 14 and up. Not a toy. Contains small parts: choking hazard. Keep away from children under 3. Adult supervision recommended.

Made by Atech ApS, Lille Strandstræde 6A, st. th., 1254 København K, Denmark.

Technical specifications

Part
DC Motor (H-Bridge)
Interface
Digital
Ports
1 port
Current
~500 mA
Size
19.5 x 48.3 x 19.1 mm
Chip
DRV8833 (Texas Instruments)

Pins

3.3V
supply
GND
ground
Data A
IN1
Data B
IN2

Key features

  • High torque for deliberate movements
  • Forward and reverse control
  • Precise speed control
  • Integrated H-bridge driver

Common applications

Motorized vehicles
Fans and ventilation
Conveyor systems
Robotic movement
+ Use in Project

Technical

Actuator

DC Motor

DC Motor (H-Bridge)
Interfacedigital
PortsTakes 1 port; needs a port carrying digital
Current500 mA
Size19.5 × 19.14 × 48.3 mm (CAD bounding box)
DriverDCMotor

DC motor with H-bridge driver. IN1 on Line B, IN2 on Line A, as the driver is wired (the module's documentation labels them the other way round). Supports PWM speed control.

What it can do
  • forward Run motor forward at specified speed (0-255)
  • reverse Run motor in reverse at specified speed (0-255)
  • stop Stop the motor (coast)
  • brake Brake the motor (active stop)
  • set_speed Set motor speed and direction (-255 to +255)
How it works
DC MOTOR (H-Bridge):
- forward(speed) and reverse(speed) take 0–255. stop() coasts, brake() active-stops.
- setSpeed(-255 to +255) combines direction and speed in one call.
- When motors are on OPPOSITE SIDES of a vehicle, they face opposite directions physically.
  To go straight: left motors forward(), right motors reverse() (or vice versa).
- NEVER use analogWrite() or digitalWrite() directly. Always use the motor instance methods.
Suggested control

A horizontal slider from -100 to +100 representing motor speed (negative = reverse) that dispatches a speed action live as it moves. Add a prominent Stop button at center-zero, and a text readout showing current direction + magnitude.

Pinout
Pinout
PinLineDirFunction
1HV–not connected
25V–not connected
33.3Vinputsupply
4GND–ground
5Data AoutputIN1
6Data BoutputIN2

from p2p/ground_truth/hardware/prototyping_line/modules/dc_motor.md

Chip
DRV8833Texas Instrumentsdatasheet ↗
