Light Grid

Light Grid

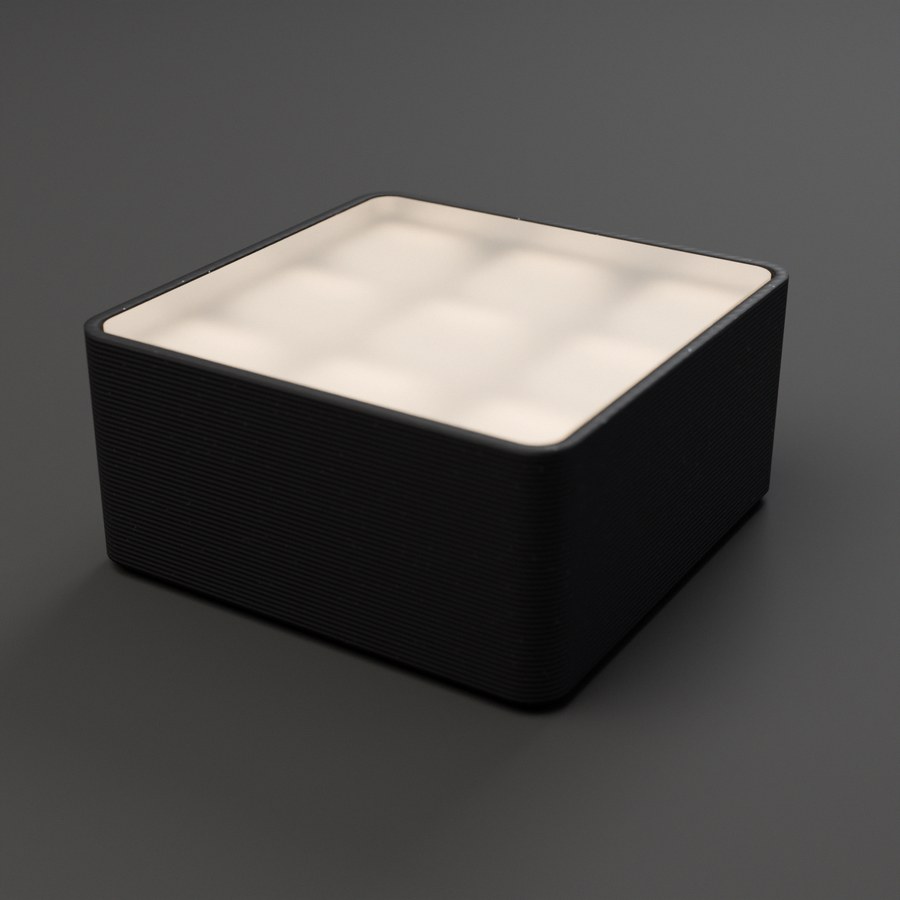

3x3 grid of RGB LEDs (9 total)

Addressable RGB LED matrix with 9 individually controllable LEDs arranged in a 3x3 grid. Each LED can display up to 16 million different colors.

For ages 14 and up. Not a toy. Contains small parts: choking hazard. Keep away from children under 3. Adult supervision recommended.

Made by Atech ApS, Lille Strandstræde 6A, st. th., 1254 København K, Denmark.

Technical specifications

Part
NeoPixel 3x3 LED Grid
Interface
Digital
Ports
1 port
Current
~540 mA
Size
19.5 x 19.5 x 9.5 mm
Chip
WS2812B (Worldsemi)

Pins

3.3V
supply
GND
ground
Data A
LED data (V1.x, RGB)
Data B
LED data (V2.x, RGBW)

Key features

  • 9 individually addressable LEDs
  • Up to 16 million colors per LED
  • Perfect for patterns, ambiance and motion

Common applications

Status indicators
Animations
Color displays
Visual feedback
+ Use in Project

Technical

Light

LED Grid

NeoPixel 3x3 LED Grid
Interfacedigital
PortsTakes 1 port; needs a port carrying digital
Current540 mA
Size19.5 × 9.54 × 19.5 mm (CAD bounding box)
DriverNeoPixelGrid
Recommendedthe default output; 9 RGB LEDs, one port, instant visible feedback

3x3 grid of NeoPixel LEDs (9 total). Supports two module revisions transparently: the original RGB module (data on Line A) and the newer RGBW module (data on Line B). The driver writes to both lines every frame so generated code is identical regardless of which revision is plugged in. Brightness is capped at 20% of max to keep the newer RGBW module from being blinding.

What it can do
  • set_pixel Set a single LED by index (0-8) to RGB color
  • set_all Set all LEDs to the same RGB color
  • set_row Set an entire row to a color
  • set_column Set an entire column to a color
  • clear Turn off all LEDs
  • show Update physical LEDs with current colors
  • set_brightness Set global brightness (0-255). Values above 51 are clamped to 51 (20% cap).
  • get_pixel_color Get a pixel's color as packed uint32_t (0x00RRGGBB). Extract: r = (color >> 16) & 0xFF, g = (color >> 8) & 0xFF, b = color & 0xFF
How it works
NEOPIXEL 3x3 LED GRID:
- setPixel(index, r, g, b) sets one LED. Index 0-8 in row-major order (0=top-left, 8=bottom-right).
- setAll(r, g, b) sets all 9 LEDs to the same color.
- MUST call show() after any color changes. Without it nothing updates on the physical LEDs.
- setBrightness(value) controls global brightness. Call before show(). Hard-capped at 51 (20% of 255);
  requesting anything higher just gets clamped. Scale your brightness ramps to 0-51, not 0-255.
- clear() + show() turns all LEDs off.
- The driver drives BOTH the old RGB module (Line A) and the new RGBW module (Line B) in parallel,
  so user code is identical for either revision. Do not try to address the white channel directly;
  the RGB API already produces correct output on both revisions.
- setRow(row, r, g, b) and setColumn(col, r, g, b) for row=0-2, col=0-2.
- Keep animations at 20-50ms delay between frames for smooth visuals.
- PERFORMANCE: show() takes ~5ms on ESP32 (the driver writes to both module
  revisions every frame). Calling it in a tight loop, or on every tick of
  an input driver like a rotary encoder, will accumulate visible catch-up
  lag during fast user input.
  RULE 1: only call show() when the colors actually changed. Track a dirty
  flag or compare against the previous color, e.g.:
    if (r != lastR || g != lastG || b != lastB) {
      neopixel.setAll(r, g, b);
      neopixel.show();
      lastR = r; lastG = g; lastB = b;
    }
  RULE 2: for INTERACTIVE-INPUT loops (knob-to-color, slider-to-brightness,
  etc.) that can fire many times per second, coalesce LED updates to ~30Hz.
  Instead of calling show() on every loop tick, only actually push the
  current color when >=33ms have passed since the last show(). The input
  still polls fast; only the LED write is throttled. Example:
    unsigned long now = millis();
    if (dirty && now - lastShow >= 33) {
      neopixel.setAll(r, g, b);
      neopixel.show();
      lastShow = now;
      dirty = false;
    }
  For pulsing/breathing animations, cap the framerate the same way
  (every 30-50ms).
Suggested control

A 3x3 grid of clickable cells where each cell toggles between off and the active paint color. Put a color picker at the top to choose the active color, plus a 'Clear all' button. Auto-send the full grid state on every change, or batch behind a Send button.

Pinout V1.x · V2.x
Pinout
PinLineDirFunction
1HV–not connected
25V–not connected
33.3Vinputsupply
4GND–ground
5Data AoutputLED data (V1.x, RGB)
6Data BoutputLED data (V2.x, RGBW)

from p2p/ground_truth/hardware/prototyping_line/modules/neopixel_grid.md

Chip
WS2812BWorldsemidatasheet ↗
