Module Specification
10-Port Motherboard

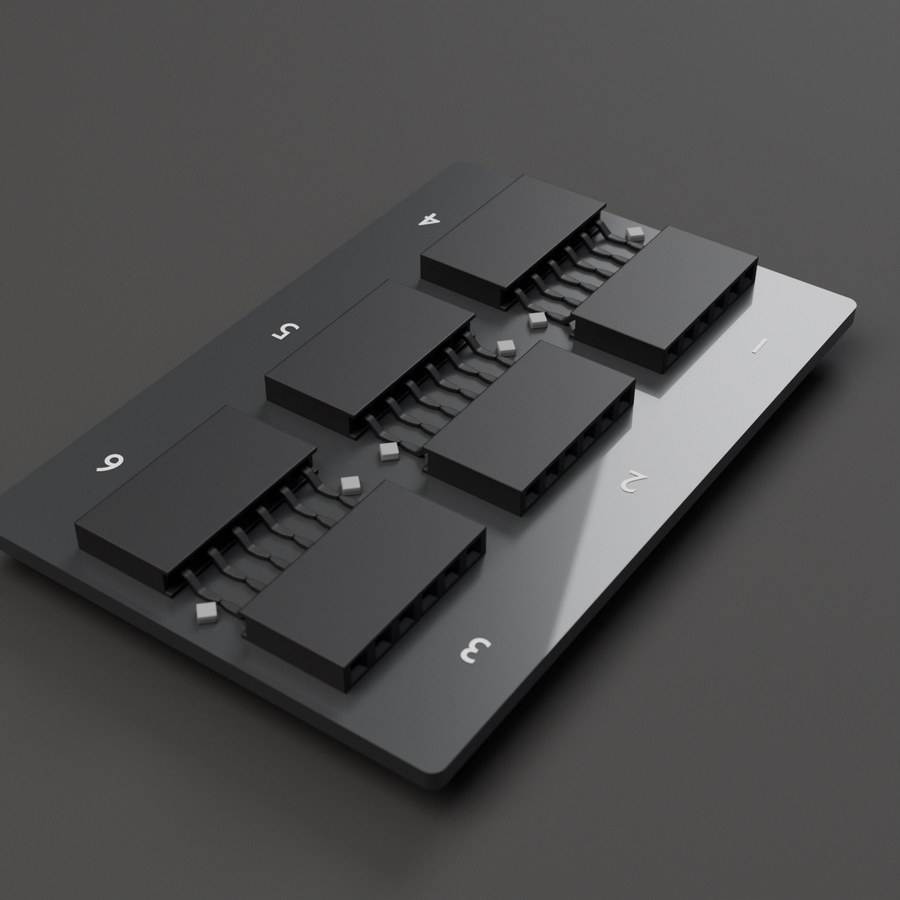

The compact two-sided board: nine modules in 40 x 60 mm
Description
The same ESP32-S3 and the same port contract as the 14-port board, in a 40 x 60 mm footprint with ports on both faces: six on top along a central spine opening left and right, four underneath opening toward the edges. Nine of the ten ports take modules; one carries USB. Everything that runs on the 14-port board runs here unchanged. Choose it when a build needs up to nine modules in the smallest possible size, or wants modules entering from four directions.
Technical Specifications
- Interface:
- USB-C, WiFi, Bluetooth 5.0 LE
- Voltage:
- HV rail up to 30 V
- Size:
- 40 x 60 mm, 10 ports (9 usable)
Key Features
- →ESP32-S3-WROOM-1 (8 MB flash, 2 MB PSRAM)
- →Ports on both faces
- →Fourteen addressable LEDs
- →HV rail rated to 30 V
- →Same firmware and modules as the 14-port board
Common Applications
Wearables and handhelds
Builds that must fit a small enclosure
Modules entering from four sides
Battery and higher-voltage projects
